underground mining dump truck for sale with cheap price and high quality,3 wheel electric motorcycle

  • >=1 Sets
    $3,200.00
Model Number:
ZY180
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 8 9 - 20 >20
Est. Time(days) 15 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$3,200.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Transmission Type:
Automatic
Gross Vehicle Weight:
1000
Place of Origin:
Henan, China
Brand Name:
Jinwang
Dimensions (L x W x H) (mm):
3300*1200*1400mm
Loading capacity:
2000kg
Motor:
driving motor power power 3000w
voltage:
72 V
weight:
1000kg
Battery model:
185A
operating speed:
10-20km/h
working platform height:
15-25km/h
Color:
orange
application:
mine, environmental cleaning etc.
Brand:
Jinwang
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery

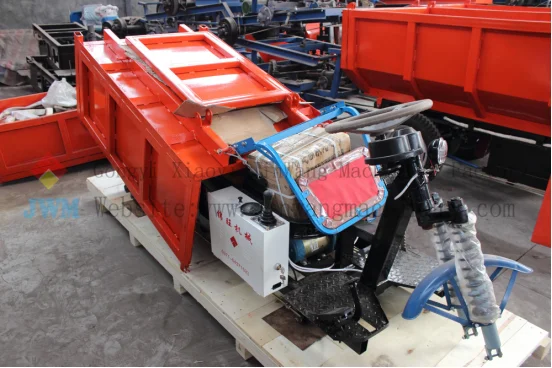

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
One 20 GP Container can take 10 sets 1 ton electric tricycles, which are aparted; and take 8 sets Complete 1 ton electric tricycles.
Port
Qindao port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 8 9 - 20 >20
Est. Time(days) 15 25 To be negotiated
Product Description

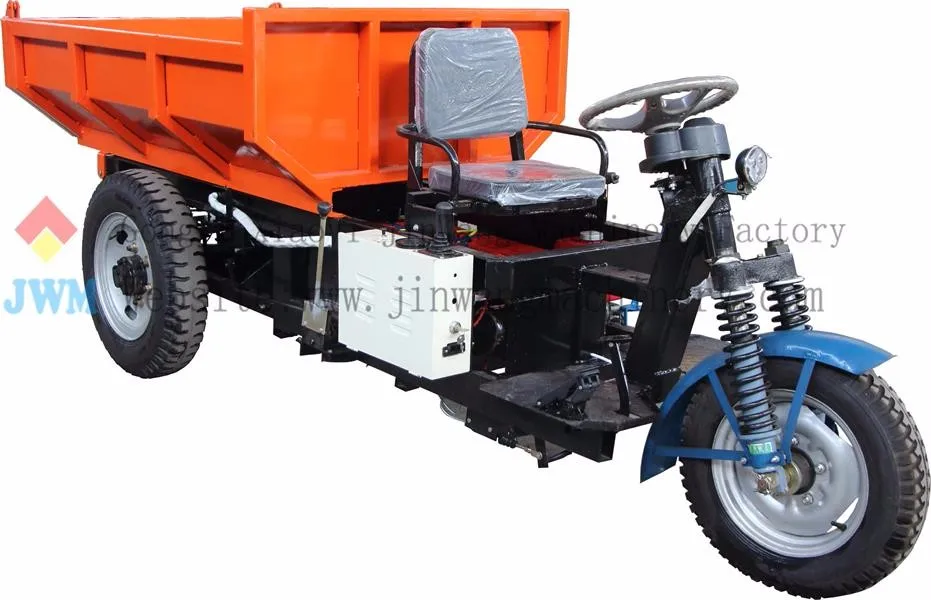

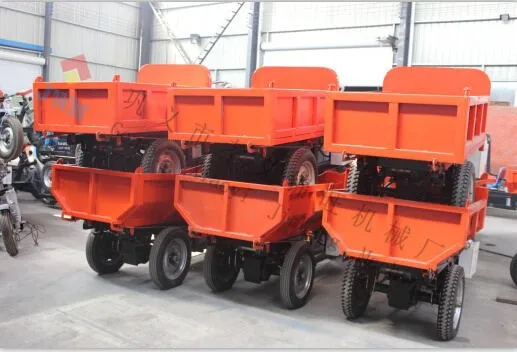

underground mining dump truck for sale with cheap price and high quality


The  mining dump truck as the main product of our company , it is in large demand in the national market with its high motive power, long working time, loading capacity, as well as the high adaptability in different road conditions.

  The mining dump truck can be applied in mine, brick factory, environmental cleaning and so on. We always earn high compliments from our customer at home and overseas because our high quality and reasonable price
Model
ZY155
ZY165
ZY180
ZY190
Loading capacity
1000kg
1500kg
2000kg
3000kg
Voltage
48V
60V
72V
72V
Overall sizes
2600*900*1200mm
3000*1100*1200mm
3300*1200*1400mm
3600*1200*1400mm
Cargo box sizes
1500*1000*400mm
1600*1000*500mm
1800*1200*500mm
2000*1200*500
Weight
520kg
850kg
1000kg
1400kg
Battery model
185A
Rear tire type
450-14
500-14
600-16
700-16
Front tire type
400-12
450-14
450-14
450-14
Work platform height
600mm
700mm
720mm
730mm
Operating speed
15-25km/h
Charging time
First is 12h, normal 6h to 8h
Working time
10-12h
Lifting Motor Power
1000w
Driving Motor power
1000w
1500w
3000w
7000w

Main Features

1) No pollution, no noisy, electric as power resources.
2) High motive power, each dumper has 2 motors.
3) Easy to operate and maintain without technical training.
4) Large loading capacity, widely used.
Detailed Images

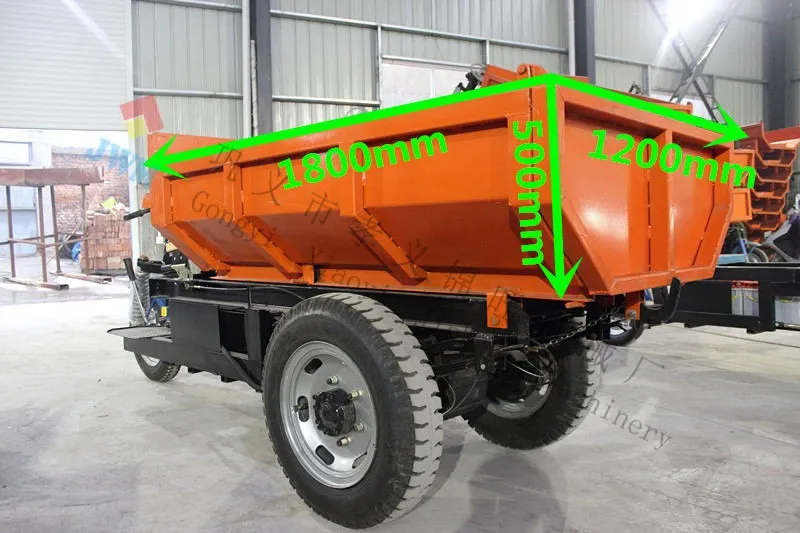

Name: Cargo size

The cargo box size is 1800mm*1200mm*500mm, which has the advantage of big loading capacity.

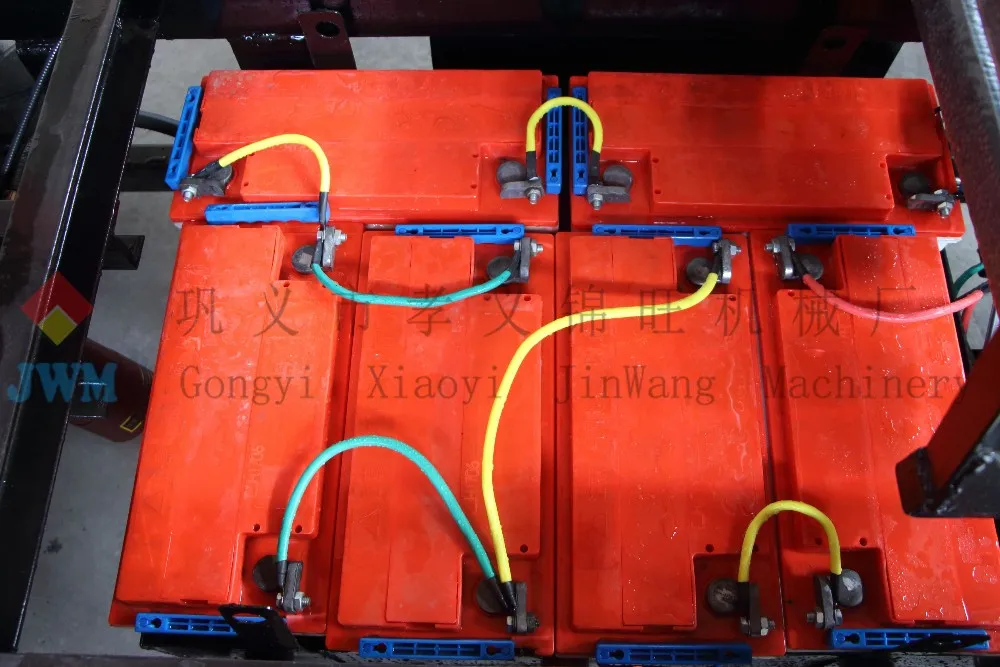

Name: Battery
The truck takes 6 pieces of storage batteries , which is 72 volt as power source. (support removable charging)

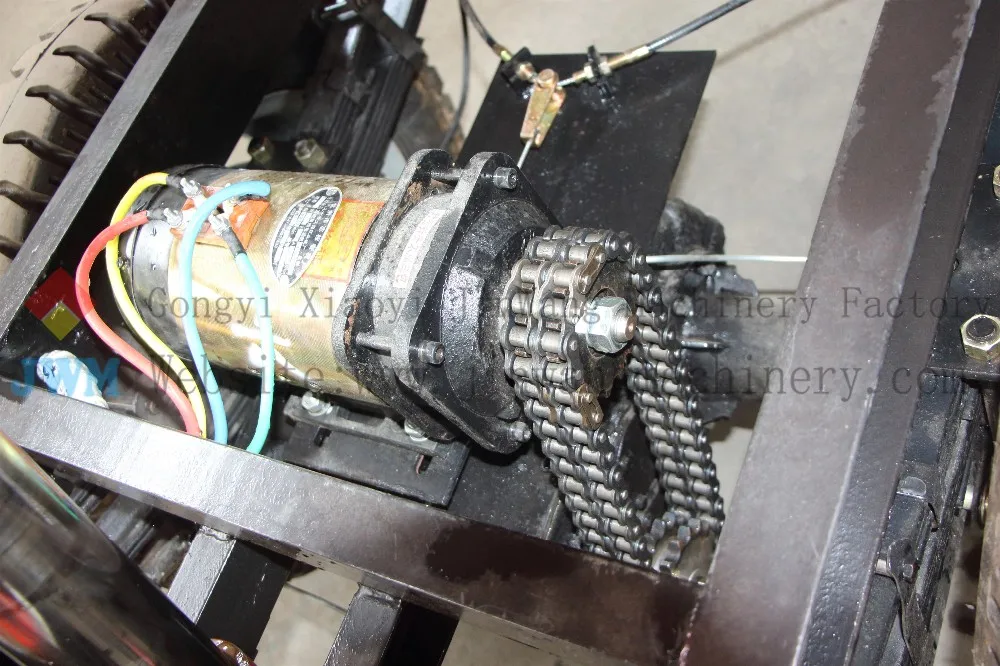

    The Lifting Motor power is 1000w                      The Driving Motor power is 3000w


our factory using the standard and high quality direct-current dynamo, which is the power of Hydraulic ram.


more reliable and saving energy.

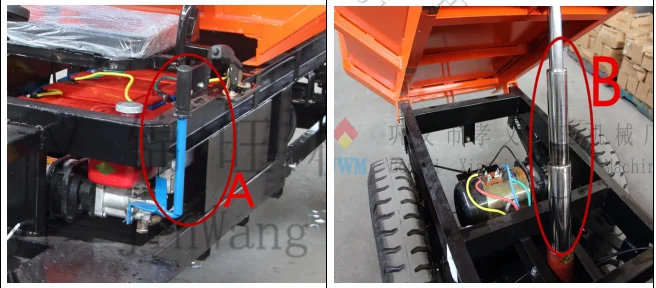

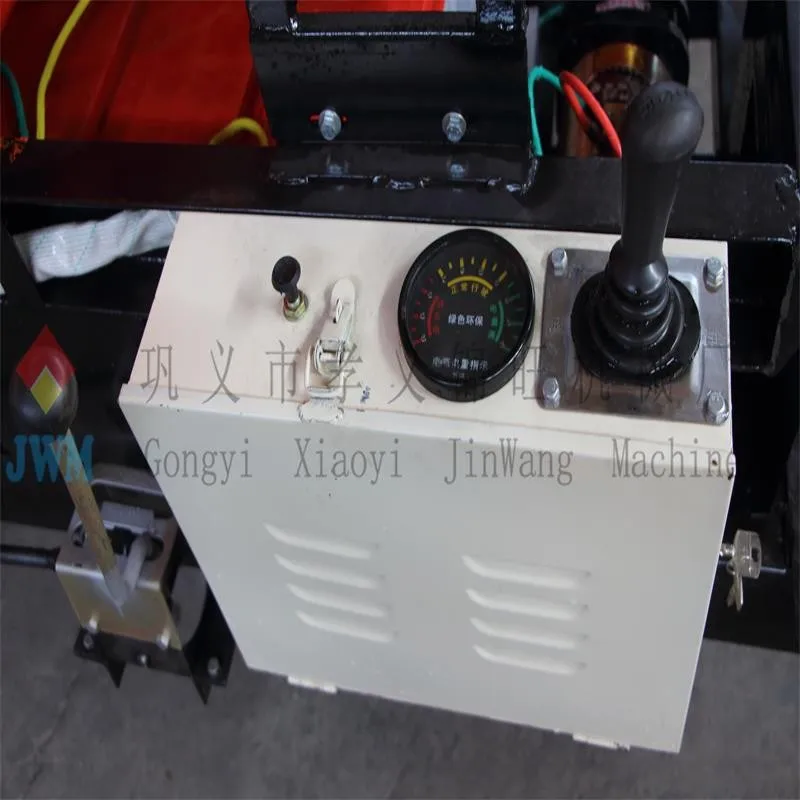

Control system and Hydraulic ram

A: Control system   B: Hydraulic ram   When the cargo box need to lift, pull the handle back, When the cargo box need to fall, pull the handle front. The hydraulic ram of our factory all made of high quality materials , it can lift up for 3 sections, the biggest angle is 45 degree.

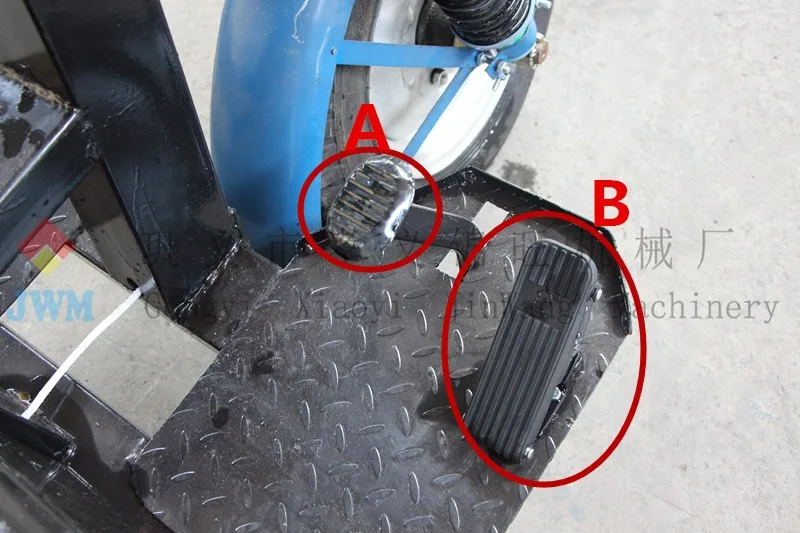

A: Brake pedal
 B: Accelerator pedal
easy to operate and more safe

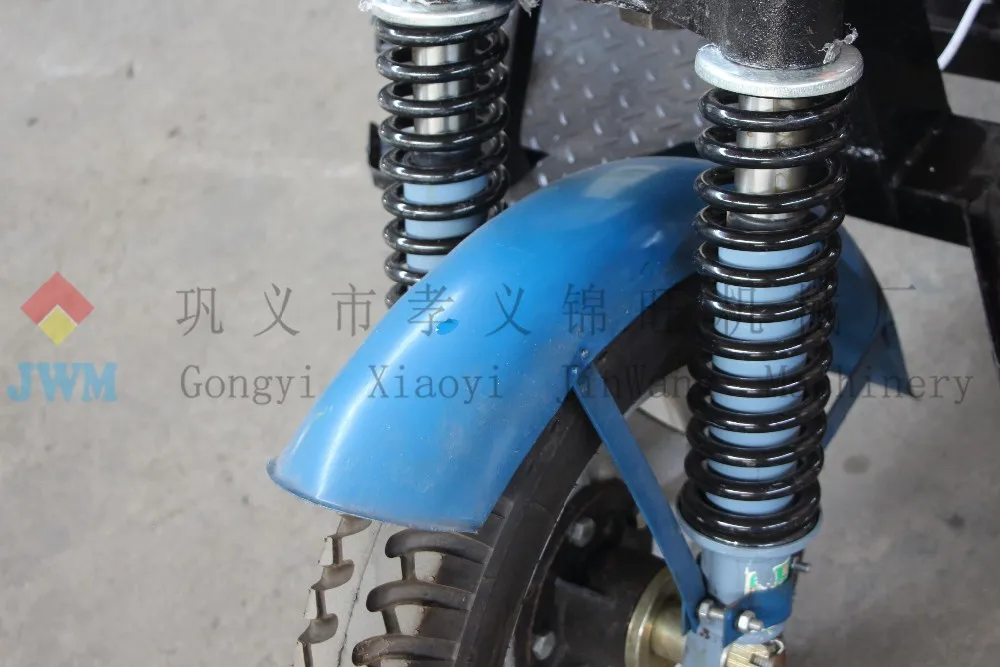

Shock mitigation system
Cushion the shock of the electric car, protect the electric car from

the damage of shock.

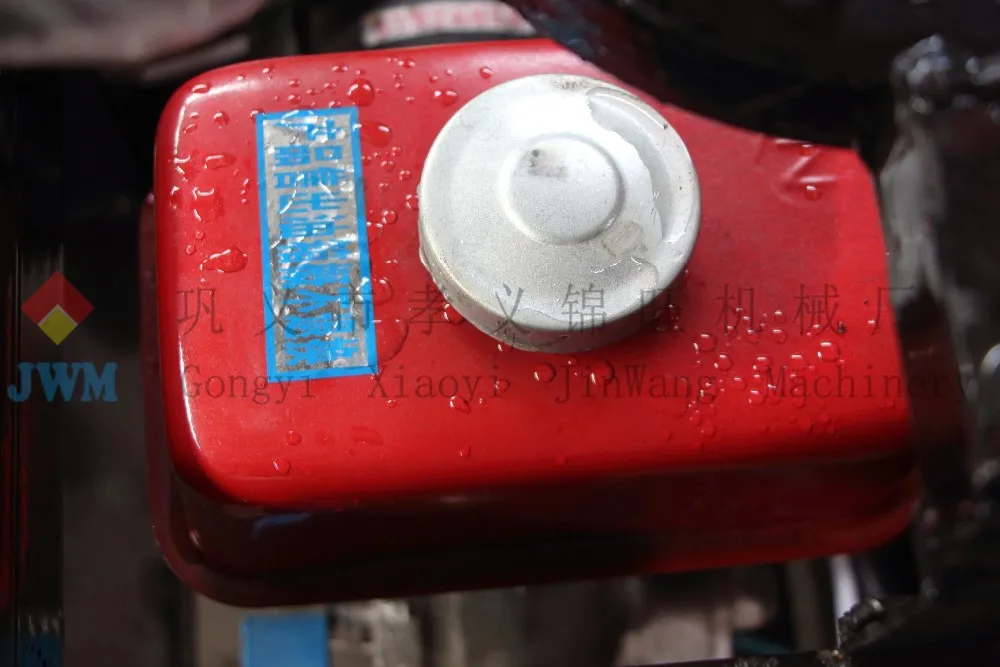

Tank

hydraulic fluid


Hand brake

easy to operate and more safe


coulomb-meter

check the quantity of electricity in time, so that can avoid the bad situation, like out of charge in the middle way.

Double chain

hardly to broken, keep the speed steady to drive.

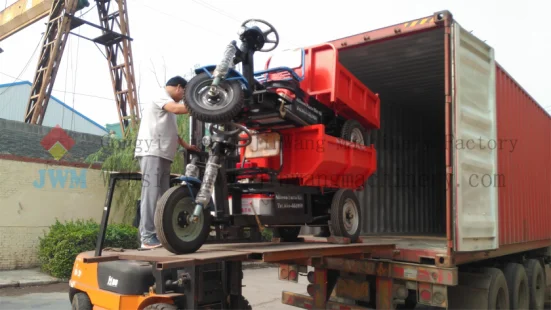

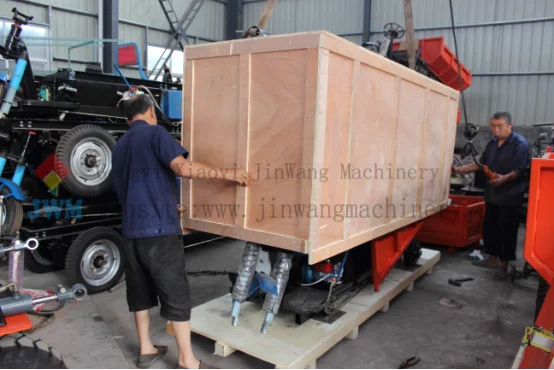

Packing & Delivery

      Less than container load

Full container load

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

One 20 GP Container can take 10 sets 1 ton electric tricycles, which are aparted; and take 8 sets Complete 1 ton electric tricycles.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* sincerely welcome you View our company

After-Sales Service

* Training how to operate the machine.

* try our best to provide overseas service.

About us

Gongyi XiaoYi JingWang Machinery Founded in 1996 and located in north Yong’an Road of Gongyi County. To protect the environment ,since the first beginning we focused on the development of pure electric products.

Main products: electric tricycle transporter, Oil press machine , Quantitative packing machine, Brick making machine
.
